Wireless Bluetooth Hand Switch

Short Description:

1.Full-duplex mode of Bluetooth 4.0 protocol, reliable connection, outstanding performance through wall;
2.When the battery is weak and the Bluetooth connection is poor, the indicator light flashes.
3.According to the characteristics of the X-ray machine and the development of two – step three – key control mode;
4.Compact and easy to use receiving end, hidden fixed and hanging installation;
5.Receiving terminal three relay contact output, external voltage line connection, no need to change the original machine working mode.
6.The control mode can be customized according to customer requirements.

Send email to us

Product Detail

Product Tags

Type		Picture	Model

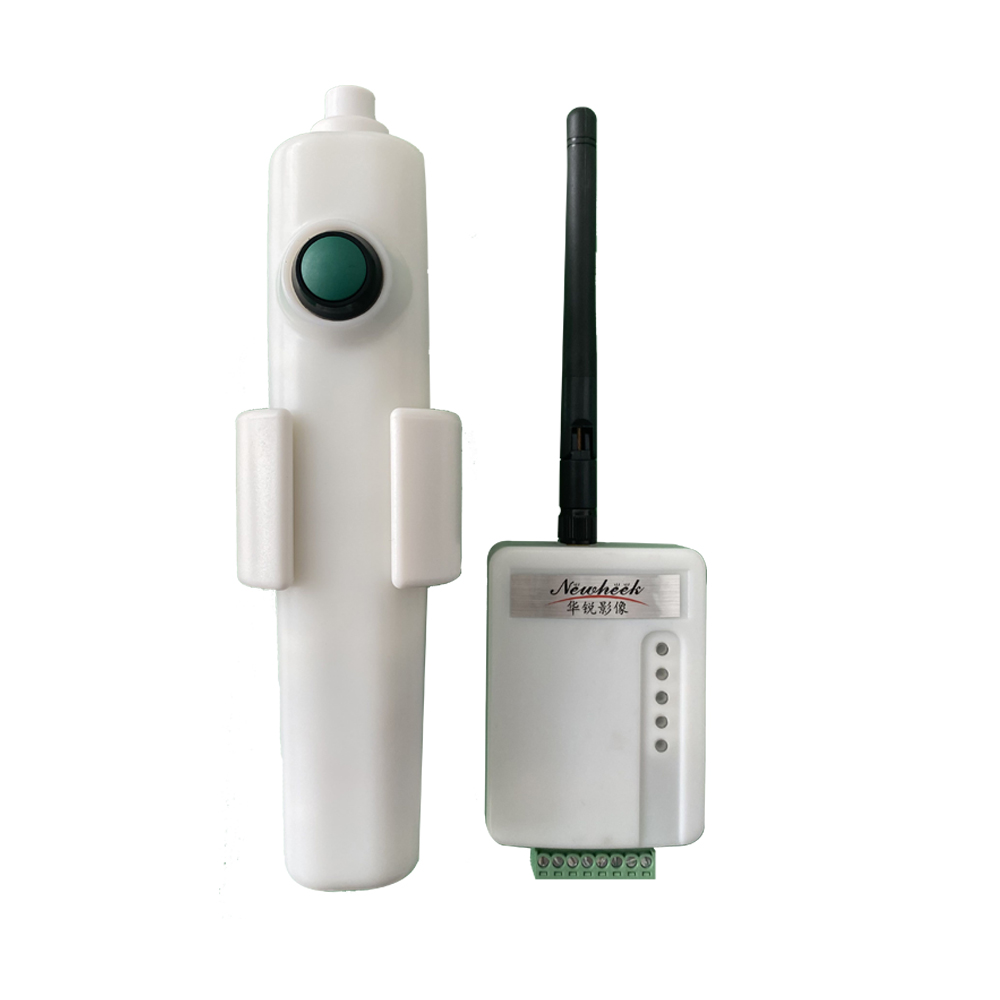

Wireless Hand Switch	Handle		C2UW-LP-I DA
Wireless Hand Switch	Receiver		C2UW-LU DA

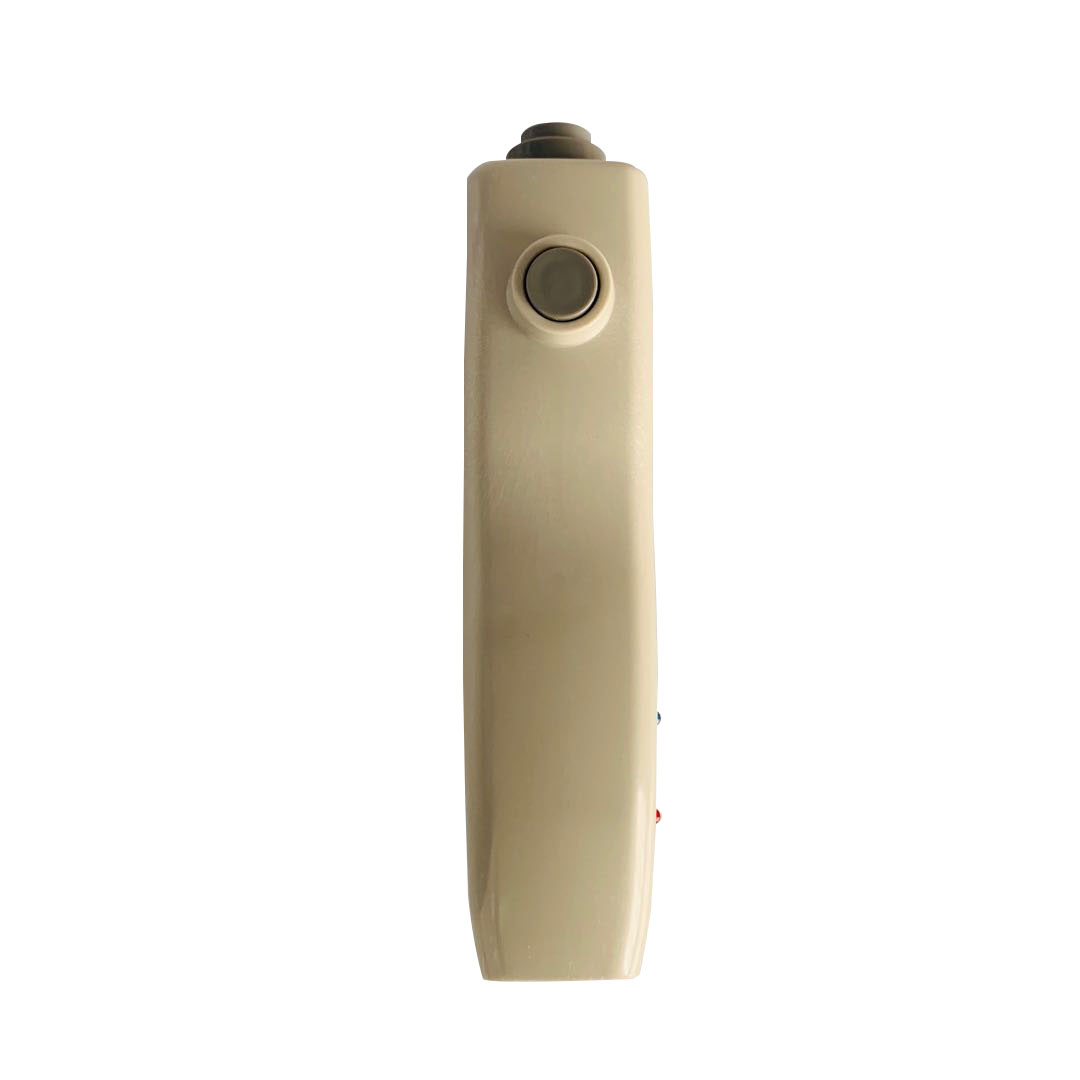

1.Handle (the transmitting terminal C2UW-LP-I DA)
Battery: Three 7# alkaline batteries are recommended
2.Receiver (the receiving terminal C2UW-LU DA）

Power Supply
Rated Voltage	4.5V
Allowable voltage range	3V-4.5V

Power Supply

Current Consumption

Rated Voltage

5V-12V

Typical Value

100mA

Allowable Voltage Range

4.5V-13V DC

Max

400mA

3. The Transmitting Terminal

Main switch 1st step	Ready
Main switch 2nd step	Exposure
Sub switch 3rd step	Control collimater
Blue light	Bluetooth
Red light	Low voltage indicator light

4 The Receiving Terminal

LED Light 1

(Red)

Power on indicator

The internal circuit is powered on, and when power is supplied to the receiving terminal, this LED light will light up.

LED Light 2

(Blue)

Bluetooth connection indicator

1. The LED light flashes, indicating that it is not connected.

2. It flashes quickly, indicating that the Bluetooth connection is in progress.

3. Off, it means that the Bluetooth connection is successful and it is in a low-power state.

LED Light 3

(Green)

Main switch 1st step is turned on

SW1

LED Light 4

(Green)

Main switch 2nd step is turned on

SW2

LED Light 5

(Green)

Switch 3rd step is turned on

SW3

Technical Specification

Model		C2UW-LP-I DA	C2UW-LU DA
Specification		Bluetooth 4.0 low energy
Frequency		2.4GHz, area (2.402GHz to 2.480GHz)
Communication Range		About 10m (Open field)
Response Time		When the switch is pressed : Max 70msWhen the switch is released : Max 50ms
Number of Connections		Max 1
Allowable Operating Frequency Shock		≤60times/min
Vibration Failure		300m/s
Shock Damage		Frequency is 10Hz to 55Hz, double amplitude 1.5mm
Mechanical Durability	Main Switch	≥200,000 times	≥200,000 times
	Sub Switch	≥200,000 times	≥200,000 times
Range of Working Temperature		0℃ to 40℃
Working Humidity Range		90%RH or below ( no icing or condensation )
Weight		About 0.1kg(with base ,no battery)	About 0.05kg

Note: The above values are typical values.

Product Show

1.Size

Unit:mm

Wiring connection

Recommended Batteries
Steps and precautions for batteries replacement:
1.Please use three 7# alkaline batteries. Don’t use batteries
other than the specified . Or it may cause malfunction or damage.
2.Install or replace batteries
(1)Remove the screws using a phillips screwdriver and open the battery cover
(2)Remove the battery case and install three AAA alkaline batteries
(3)Return the battery case to its original position, paying attention to the positive and negative terminals
(4)Install the battery cover and tighten the screws
