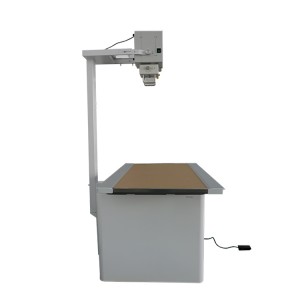

Veterinary diagnostic X-ray machine
The main technical parameters:
1. Power requirements
Power supply voltage: 220V±10% Power supply frequency: 50Hz±0.5Hz
Power supply internal resistance: 0.5Ω (220V) Power supply capacity: 4kVA
2. Technical parameters
Tube voltage (kV): 40～110kV (1kV increment/decrement)
Tube current (mA): 30～70 mA
Exposure time (s): 0.04～5.0 s
Parameters:
Tube current and tube voltage adjustment range
| Tube current mA
30 35 40 50 70 |
Tube voltage kV
40～110 40～100 40～85 40～70 40～50 |
time S
0.04～5.0 0.04～4.0 0.04～4.0 0.04～3.2 0.04～3.2 |
Radiology x ray table parameters:
| Bed material | acrylic board |
| Bed surface size | 1360mm×720mm |
| Bed height | 830mm |
| Column height | 1910mm |
| Horizontal movement distance of bed surface | 260mm |
| Vertical movement distance of bed surface | 120mm |
| Overall size | 1360mm×720mm×1910mm |
The maximum cassette size of the photographic clip: 356mm×432mm (14”×17”)
Filter (fixed) Grid density: N103 Focal length: 1000mm
Features:
●Specially designed for animal photography, easy to operate.
●Integrated design of the whole machine, small footprint, suitable for use in small veterinary hospitals.
●Korean aluminum-based dense grain fixed grid, the image is clearer.
●Floating bed, electromagnetic locking.
Product Show
Main slogan
Newheek Image,Clear Damage
Packaging & Delivery
Waterproof and shockproof carton
Port
Qingdao ningbo shanghai
Picture Example:
Lead Time:
|
Quantity(Pieces) |
1 - 10 |
11 - 50 |
51 - 200 |
>200 |
|
Est. Time(days) |
3 |
10 |
20 |
To be negotiated |
Certificate
