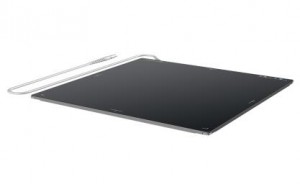

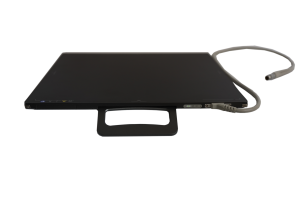

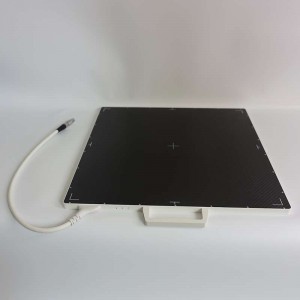

NK4343X Digital Radiography Wired Cassette

Short Description:

NK4343X is a veterinary X-ray flat panel detector, high-definition imaging, conventional size: 14*17 and 17*17, with low-dose, fast image transmission. The super battery life can ensure a day’s use even in a busy radiology room, without the hassle of charging or replacing the battery. It has the characteristics of fast, stable and convenient.

Brand Name: NEWHEEK

Model Number: NK3543Z

Detector Technology: Amorphous Silicon

Scintillator: CSI

Spatial Resolution : 3.6Lp/mm

Pixels Matrix: 3072 × 3072

AD Conversion: 16bits

Send email to us

Product Detail

Product Tags

NK4343X is a new generation of X-ray flat panel detector. CsI technology can not only significantly reduce the exposure dose, but also improve the image quality. Moreover, the fast imaging workflow allows the operator to easily complete the shooting of the animal. The functions it should have can meet a variety of applications, including real-time camera, non-destructive testing and other fields.

Highlights of NK4343X innovative a-Si portable detector assembly for veterinary and medical purposes

Fast collection

Multiple trigger mode

16-bit conversion

Stable and reliable AED control

High resolution image quality

Parameters:

Model	NK4343X（wired）
Detector technology	a-Si
Scintillator	CsI
Image size	43 × 43cm
Pixel matrix	3072 × 3072
Pixel pitch	139µm
A / D conversion	16bit
Spatial resolution	3.6 LP / mm
Image acquisition time	Preview Image(3s);Full Image(5s)
X-ray voltage range	40-150 KV
Data interface	GigE
Trigger Mode	AED/Software
Dimensions	46 × 46 × 1.5 cm
Detector Weight	4kg
Detector Face Load	150 kg
Water tightness	IPX1
Power Dissipation	20 W
Adapter input	AC 100-240V, 50-60Hz
Adapter output	DC 24V
Detector Protection Material	Carbon,PC+ABS
Detector housing materia	Aluminum Alloy
Operating Environment	5-35ºC, 30-80% RH(Non-Condensing)

Product Purpose

Digital imaging system replaces the original water-washed film imaging method

Product Scene

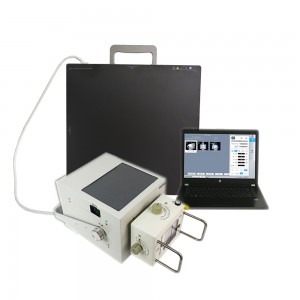

Our flat panel detectors can be used with medical X-ray machines, portable machines, mobile X-ray machines and other equipment
