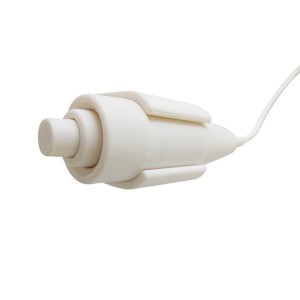

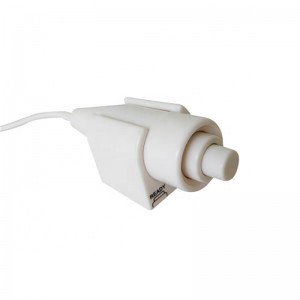

L02 Hand Switch
Video
|
Operation Voltage |
Current |
Housing Material | Hand Switch Cable Core | ||
| Red | White | Green | |||
| 125V | 3A | white, ABS plastic | 1 Step | Common
Point |
II Step |
| Ambient
Temperature |
Relative Humidity | Atmospheric Pressure | |||
| -20°C-70°C | <93% | 50-106kPa | |||
Configuration
| Standard | 3-core, 3m-wire | 4-core, 3m-wire |
| Customized | 3-core, 6m or 10m wire | 4-core, 6m or 10m wire |
| Other requirement | Other requirement |
1.Material:
(1)frosted surface
(2)smooth surface
2.Features:
(1)Using omron long life micro switch design
(2)Double spring two step design
(3)Button cap concave design
(4)Can replace GE, Omron, Fuji and other brands hand switch
(5)Mute design, soft feel
3.Scope of application: digital x ray machine, digital DR gastrointestinal machine, C arm, veterinary X-ray machine
4. The plug can be customized (need to provide wiring mode)
Mechanical parameters:
(1) Mechanical parameters:
| mechanical life | ≤ 200,000 times |
| Handle size, Length | 10.5cm |
| (Max.) Diameter | 3cm |
| Spring wire | standard 4 core 3 meters (3 core optional, wire length can be customized) |
| Gear | 2 |
(2) Electrical parameters:
| switching life | ≤ 400,000 times |
|
Operating voltage
|
|
| AC | 125V 1A |
| DC | 30 V 2 A |
Application
Newheek L02 Hand Switch is the electric control device, which is used for controlling of electrical signal on-off, photographic accessory and medical x-ray machine’s radiograph exposure.
Show
Newheek L02 Hand Switch is the electric control device, which is used for controlling of electrical signal on-off, photographic accessory and medical x-ray machine’s radiograph exposure.
Main slogan
Newheek Image,Clear Damage
Company Strength
Original manufacturer of image intensifier TV system and x- ray machine accessories for more than 16 years.
√ Customers could find all kinds of x-ray machine parts here.
√ Offer on line technological support.
√ Promise super product quality with best price and service.
√ Support the third part inspection before delivery.
√ Ensure the shortest delivery time.
Packaging & Delivery
1.Waterproof and shockproof carton
2.1 piece: Packing size: 17*8.5*5.5cm,Gross Weight 0.5KG 3.10 pieces: Packing size:29*17*19cm, Gross Weight 1.7KG 4.50 pieces: Packing size:45*28*33cm, Gross Weight 11 KG 5.100 pieces: Packing size:54*47*49cm,Gross Weight 23KG Delivered by Air Express:DHL,FEDEX,UPS,TNT,EMSetc.
Delivery:
1.1-10 pieces within 3 days.
2.11-50 pieces within 5 days.
3.51-100 pieces within 10 days.
