China Hand Switch Manufacturers – Wireless X Ray Exposure Hand Switch – Newheek

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

owing to good service, a variety of high quality products, competitive prices and efficient delivery, we enjoy a good reputation among our customers. We are an energetic company with wide market for Ot Table Remote , Bluetooth Switch , High Voltage Silicone Cable , We are sincerely looking forward to establishing good cooperative relationships with customers from at home and abroad for creating a bright future together.
China Hand Switch Manufacturers – Wireless X Ray Exposure Hand Switch – Newheek Detail:

Video

Useful life

Properties  Medical X-ray Equipments & Accessories
Brand Name  Newheek

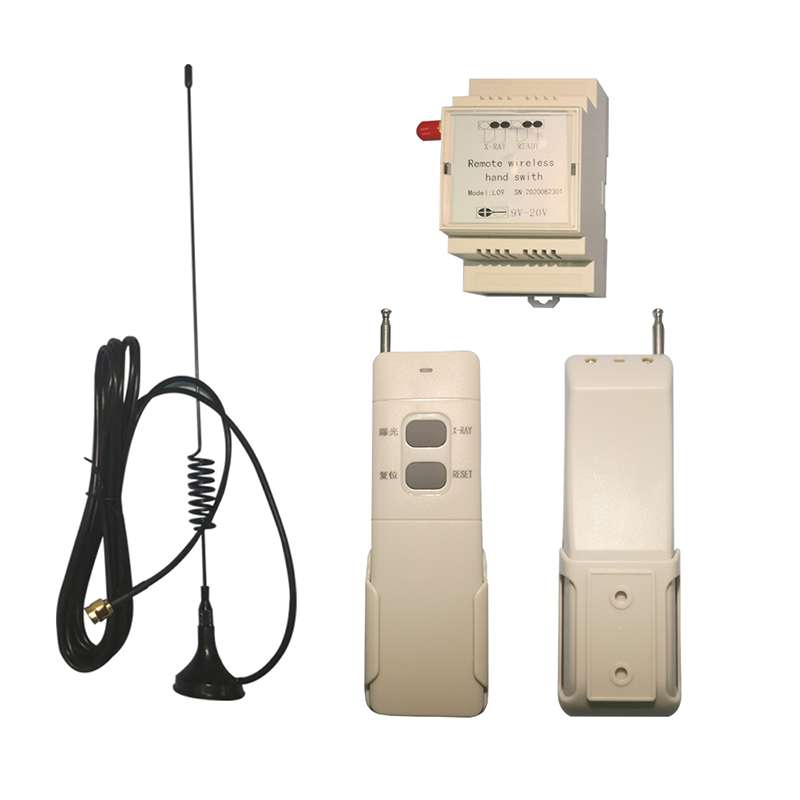

Product Name  X-ray exposure hand switch
Model Number  L09 x ray exposure hand switch with male audio plug
Place of Origin  Shandong, China (Mainland)
Application  x ray machine
Customization Available

Useful life

Receiving terminal relay

mechanical life

10,000,000 times

electric life

1,000,000 times

Remote controller

mechanical life

1,000,000 times

electric life

100,000 times

1.Auto exposure mode:
Transmitting terminal: two keys, on and off. Receiving terminal: two relays, A and B.
Work principle: when press “ON”, “A” is connected, and after 1~9s (time-delay can be adjusted), “B” is connected, and meantime “A” keep connection, then after  1~9s (time-delay can be adjusted), “A” and “B” are disconnected meantime. Press “OFF” to stop the above unfinished operation. In order to escape wrong operation, each cycle ends, it needs to press “OFF” to reset then make next operation.
Applicable scenario:Suitable for remote exposure control to avoid X – ray radiation
2.Manual exposure mode:
Transmitting terminal: two keys, on and off. Receiving terminal: two relays, A and B.
Work principle: when press “ON”, “A” is connection, after 1~9s (time-delay can be adjusted), “B” is connected, and meantime “A” keep connection, then after 1~9s (time-delay can be adjusted), “A” and “B” are disconnected meantime. If release “ON” during operation, it will stop operation. In order to escape wrong operation, each cycle ends, it needs to press “OFF” to reset then make next operation.
Applicable scenario:Suitable for close exposure operation, can stop the X-ray machine exposure operation at any time.

Technical Specification

ray-machine-Technical-Specification

1.Transmitting terminal (Remote Controller)

(1)Remote controller frequency: 315-433MHz (optional)

(2)Adopt DC/9V battery for power supply

(3)Two keys control

(4)In order to escape mistake operation, it needs to keep pressing keys for 0.5s then can receive the correct signal.

2.Receiving terminal (Wireless Controller)

Input voltage  DC 9-24V.
Control mode  a. Auto Exposure Mode; b. Manual Exposure  Mode
The time-delay adjustable period  1-9s
The relay output contact It can be chosen by on or off,
its output power 250VAC/5A 30VDC/5A
The remote receiving frequency channel 315MHZ or 433MHZ, it is optional.

3.Parameters set

In normal standby state, “–” is displayed.Press “Set” to display “1-X”. Press “Up” or “Down” to adjust the value of X and set the READY on-off time (s).Press “Set button” again to display “2-X” to adjust the on-off time of X-ray operation (seconds);Press “Set key” again to display “3-X”, which means setting the function mode: 3-2 means manual exposure mode;3-1 indicates automatic exposure mode;Press “Set button” again to display “4-X”. At this time, set READY and X-ray disconnection time (100 ms). For example, 1 indicates that the disconnection interval between second gear and first gear is 100 ms.

Main slogan

Newheek Image,Clear Damage

Company Strength

Original manufacturer of image intensifier TV system and x- ray machine accessories for more than 16 years.
√ Customers could find all kinds of x-ray machine parts here.
√ Offer on line technological support.
√ Promise super product quality with best price and service.
√ Support the third part inspection before delivery.
√ Ensure the shortest delivery time.

Packaging & Delivery

1.Waterproof and shockproof carton

2.1 piece: Packing size: 17*8.5*5.5cm,Gross Weight 0.5KG 3.10 pieces: Packing size:29*17*19cm, Gross Weight 1.7KG 4.50 pieces: Packing size:45*28*33cm, Gross Weight 11 KG 5.100 pieces: Packing size:54*47*49cm,Gross Weight 23KG Delivered by Air Express:DHL,FEDEX,UPS,TNT,EMSetc.

Delivery:

1.1-10 pieces within 3 days.

2.11-50 pieces within 5 days.

3.51-100 pieces within 10 days.

Certificate

Certificate3


Product detail pictures:

China Hand Switch Manufacturers –  Wireless X Ray Exposure Hand Switch  – Newheek detail pictures

China Hand Switch Manufacturers –  Wireless X Ray Exposure Hand Switch  – Newheek detail pictures
